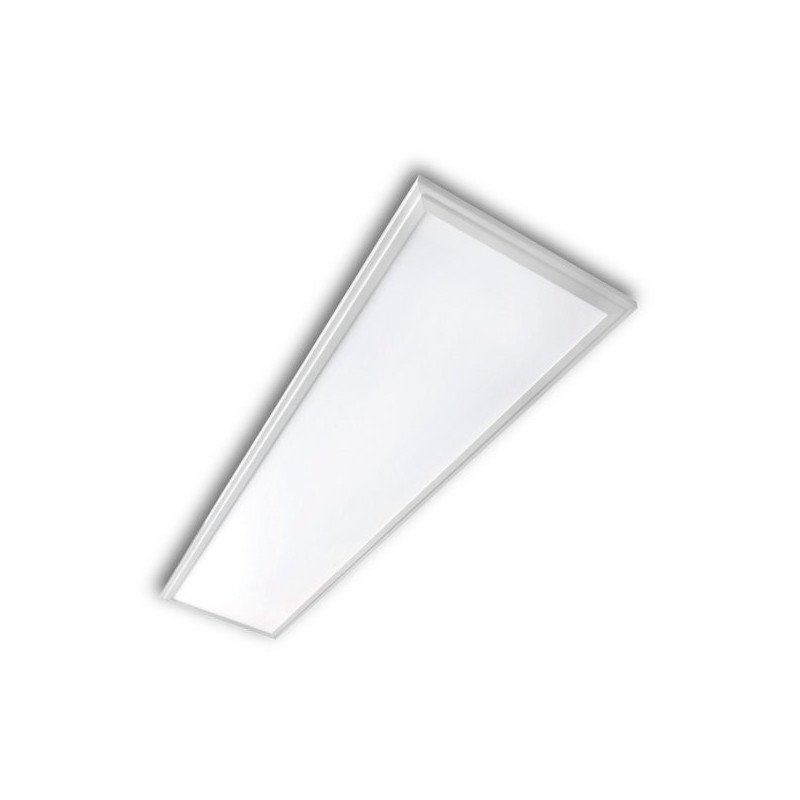

LED Panel - Extra-slim, 40W, 30 x 120 cm white frame

LED Panel - Extra-slim, 40W, 30 x 120 cm white frame

Reference PN30x120B40

€18.07 tax incl.
Color temperature

Technical details

  • Size 295 x 1195 x 9 mm
  • Cut 275 x 1175 mm
  • Power 40W
  • Lumen 3800
  • Color temperature Cool white 6000K - Natural white 4500K
  • Beam angle 120
  • Led type and quantity SMD 4014 160 leds
  • VIN 220V
  • Frequency (HZ) 50/60 hz
  • Material aluminum and polycarbonate
  • IP grade IP20
  • Duration 30,000 hours
  • Working temperature -20º / +40º
  • Certifications CE, RoHS
  • Warranty 3 years

Extra-slim 40W, 30 x 120 cm, LED ceiling panel.

Extra-slim LED panel with 3 mounting options: surface mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

White frame model.
Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.

Accessories:

The default option for this panel is the simplest - mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) Installation;n installation kit for suspended LED panel:
Installation instructions: ceiling mounted with steel cables and spring mounts.

b) Installation installation kit LED panel plaster ceiling:
Recessed installation on previously cut plaster ceiling.
