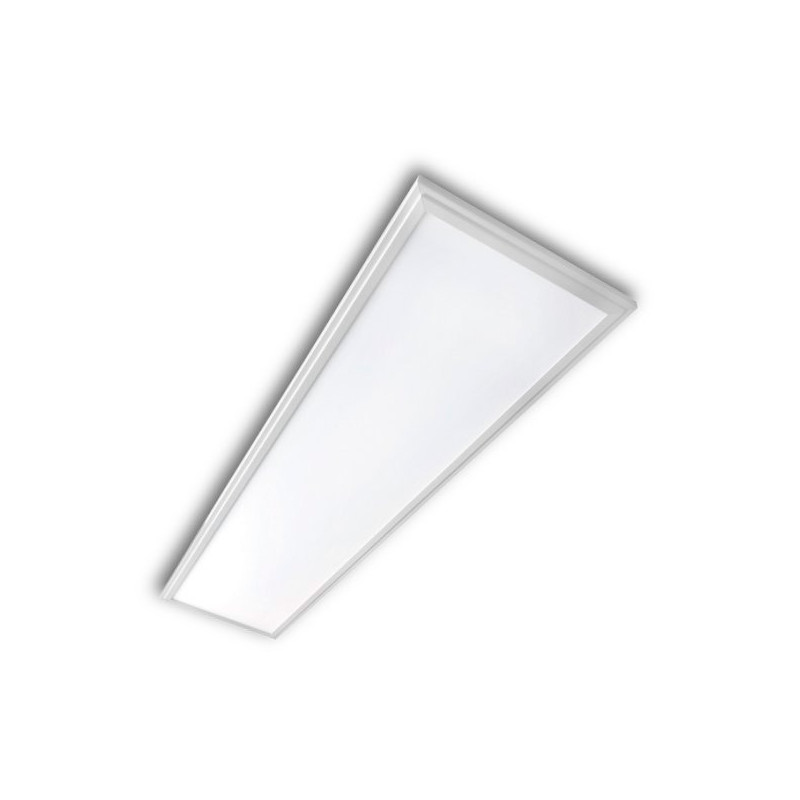

LED Panel - backlit, 40W, 30 x 120 cm white frame

Reference PR30X120B40F

€17.18 tax incl.

Technical details

Size 295 x 1195 x 35mm
Cut 275 x 1175 mm
Power 40W
Lumen 3800
Color temperature White 6000K - Warm white 4000K
Beam angle 120
VIN 185-265V
Frequency (HZ) 50 Hz
Material aluminum and polycarbonate
Dimmable No
IP grade IP20
Duration 30,000 hours
Working temperature -20º / +40º
Certifications CE, RoHS
Warranty 3 years

Backlit 40W, 30 x 120 cm, LED ceiling panel.

LED panel with 3 mounting options: surface mounted on a technical ceiling, suspended (hanging from steel cables) or bracket integrated on a plaster ceiling.

Features:

White frame model.
Driver included.

Important: To prevent damage to the luminaire, the voltage must be switched off until assembly is complete.

Accessories:

The default option for this panel is the simplest - mounted on a technical ceiling. For the other options, please buy the accessories required for each mounting system.

a) Installation;n installation kit for suspended LED panel:

Installation instructions: ceiling mounted with steel cables and spring mounts.

GO TO Installation kit suspended LED panel

b) Installation installation kit LED panel plaster ceiling:

Recessed installation on previously cut plaster ceiling.

GO TO Installation kit LED panel plaster ceiling

Clasificación energética

Instalación panel LED
Download (584.74k)
