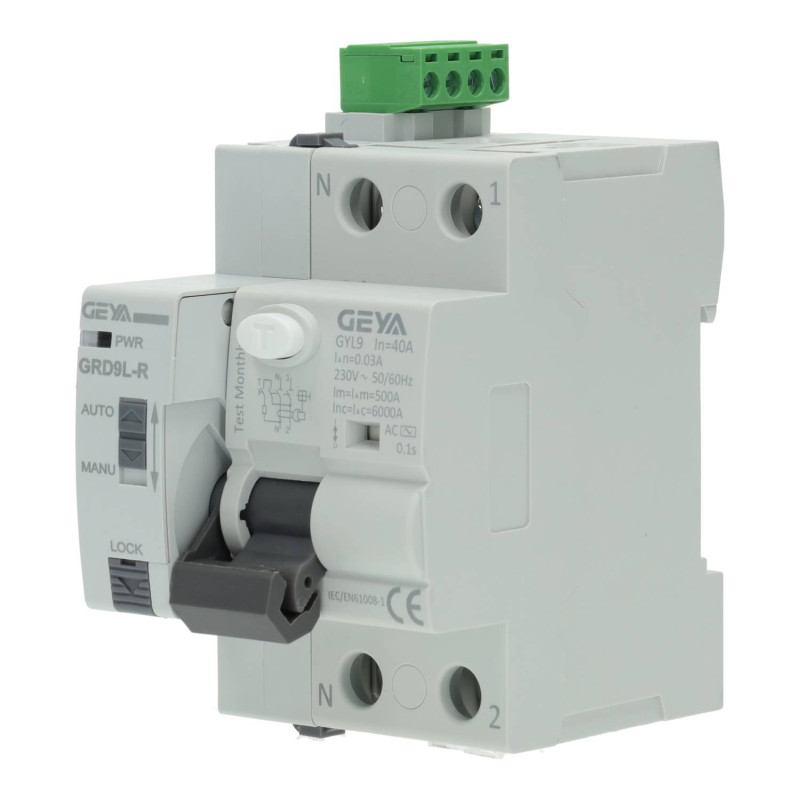

Residual current circuit breaker with auto reclosing 2P 6kA 30mA

Residual current circuit breaker with auto reclosing 2P 6kA 30mA

Reference IDR24030

€54.80 tax incl.
Intensity
Available on backorder

Technical details

  • Indoor / outdoor Interior
  • VIN AC 220-240V
  • Frequency (HZ) 50/60 hz
  • IP grade IP20
  • Working temperature -10º / +50º
  • Certifications CE, RoHS, IEC60898-1
  • Warranty 3 years

Accessories and related products

  • Indoor / outdoor Interior
  • VIN AC 220-240V
  • Frequency (HZ) 50/60 hz
  • IP grade IP20
  • Working temperature -10º / +50º
  • Certifications CE, RoHS, IEC60898-1
  • Warranty 3 years

Single-phase residual current circuit breaker with automatic reset.

In AUTO mode, this device allows the voltage to be automatically reconnected after tripping. It has 3 preset resets in 10, 60 and 300 seconds respectively. If the circuit breaker is tripped a fourth time in less than 15 minutes, it will be blocked until it is manually re-armed. It also has a manual mode in which automatic rearming is disabled.

It effectively protects the installation from earth shunts and people from direct or indirect contact.

Specifications:

- No. of poles: 2

- Rated current: 40A

- Breaking capacity: 6 kA

- Sensitivity: 30mA

- Max. conductor cross-section: 25mm²

- MANUAL/AUTO mode selector

- LED status indicator
