4-pole aluminium switch ATEX 16A IP66

Reference I4PM16EX

€103.54 tax incl.

Technical details

Output current 16A
Material aluminum
IP grade IP66
Working temperature -55ºC / +60ºC
Certifications
Weight 1.6 Kg.
Warranty 5 years

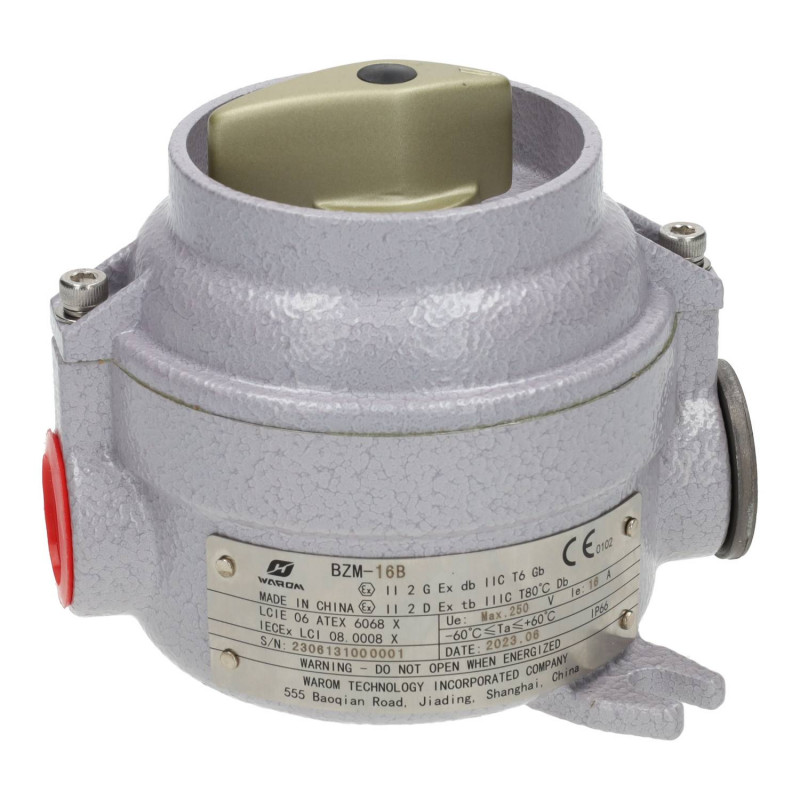

Four-pole switch for surface installation, with protection against explosive atmospheres. 0-I, cam-operated, made of copper-free aluminium.

Withstands a maximum load of 16A and 250V.

Ideal for use in factories, warehouses, workshops, industrial buildings, spray booths, boats, petrol stations and areas with potentially explosive atmospheres in general.

Suitable for zones 1 and 2 (gases) + 21 and 22 (dust).

Its IP66 degree of protection allows it to be installed in wet areas.

The connection is made by means of two metric M25 x 1.5 threaded conduits (closed with a hexagonal plug). ATEX M25 cable glands must be purchased for the lines to be used.

Product available in other variants. For more information about customised features, please contact our customer service.
